High Precision SMT Automatic Solder Paste Printer is an advanced, fully automated stencil printing machine used in Surface Mount Technology (SMT) assembly lines.
1. Definition
A High Precision SMT Automatic Solder Paste Printer is an advanced, fully automated stencil printing machine used in Surface Mount Technology (SMT) assembly lines. It is engineered to deposit solder paste onto PCB pads with micron-level accuracy (typically ±25µm to ±30µm), utilizing high-resolution CCD camera vision systems for precise alignment and closed-loop servo motor control for exceptional repeatability. Unlike entry-level or non-vision printers, this equipment is designed for fine-pitch components (down to 01005, 0.3mm pitch) and high-density PCB assemblies where printing accuracy directly impacts final product yield.
2. Description
Positioned at the very beginning of the SMT production line—immediately after the PCB loader and before the pick-and-place machine—this fully automated printer performs a highly controlled printing process:
Automatic Board Loading & Clamping: PCBs are automatically loaded via conveyor, with top-clamping or side-clamping mechanisms ensuring rigid fixation.
High-Precision Vision Alignment: Dual or single high-resolution CCD cameras capture fiducial marks on both the PCB and the stencil. Advanced pattern recognition algorithms calculate offsets in X, Y, and θ (rotation) axes, automatically adjusting the stencil or PCB table for perfect alignment—often achieving ±25µm alignment accuracy.
Closed-Loop Squeegee Control: Servo-driven squeegee heads apply controlled pressure, speed, and angle across the stencil. Closed-loop feedback systems maintain consistent printing parameters throughout the production run, compensating for paste viscosity changes.
Under-Stencil Cleaning: Integrated automatic cleaning systems (dry, wet, or vacuum) remove residual paste from the stencil underside after each print, preventing bridges and ensuring print quality.
Post-Print Inspection (Optional): Many high-precision models include 2D or 3D post-print inspection capabilities to immediately verify paste volume, height, and area, feeding data back to the printer for real-time process adjustment (closed-loop process control).
The entire process is fully automated, requiring minimal operator intervention, and is managed through an intuitive HMI (Human-Machine Interface) with recipe management for rapid product changeovers.
3. Key Features
| Feature Category | Specific Features |
|---|
| Ultra-High Precision Alignment | ±25µm to ±30µm printing accuracy; High-resolution CCD vision system (up to 12MP or higher); Automatic fiducial recognition & multi-point alignment |
| Exceptional Repeatability | Cpk ≥ 1.33 or ≥ 1.67 (industry gold standard); Precision-ground ball screws and linear guides; Temperature-compensated granite or cast-iron base for stability |
| Advanced Vision System | Top/bottom vision cameras; Automatic stencil mark & PCB fiducial detection; Pattern recognition algorithms; 2D/3D solder paste inspection integration |
| Closed-Loop Process Control | Real-time squeegee pressure, speed, and position feedback; Automatic paste viscosity compensation; Closed-loop stencil separation (peeling) control for optimal paste release |
| Automatic Cleaning System | Integrated dry/wet/vacuum under-stencil cleaning; Programmable cleaning frequency; Paperless or roll-type cleaning options |
| High Throughput | Cycle time typically 5–8 seconds per board (excluding cleaning); High-speed motion control; Rapid changeover (< 5 minutes) |
| Smart Software & Connectivity | Recipe management with barcode/QR code integration; SPC (Statistical Process Control) data reporting; MES (Manufacturing Execution System) connectivity; Remote monitoring & diagnostics (Industry 4.0 ready) |
| Robust Mechanical Construction | Heavy-duty cast iron or granite base; Vibration-dampening design; Precision linear guides with high-rigidity squeegee head |
| User-Friendly HMI | 15"–21" touchscreen interface; Intuitive programming wizard; Real-time process monitoring dashboard; Multi-language support |
| Flexible Board Handling | Supports wide PCB size range (typically 50×50mm up to 600×600mm or larger); Automatic width adjustment; Warped board compensation capability |
4. Application
High precision SMT automatic solder paste printers are essential in modern electronics manufacturing where first-pass yield and zero-defect goals are critical:
Consumer Electronics: Smartphones, tablets, laptops, smartwatches—where ultra-fine pitch components (0.3mm–0.4mm pitch) and high-density interconnect (HDI) boards are standard.
Automotive Electronics: ECU (Engine Control Units), ADAS sensors, BMS (Battery Management Systems), infotainment systems—requiring high reliability under harsh conditions.
Telecommunications: 5G base stations, routers, servers—with large, complex PCBs demanding precise paste deposition.
Medical Devices: Implantable devices, diagnostic equipment, monitoring systems—where zero defects are non-negotiable.
Aerospace & Defense: Avionics, radar systems, satellite electronics—requiring the highest levels of quality and traceability.
Industrial Electronics: PLCs, motor drives, power supplies—where long-term reliability is paramount.
Advanced Packaging: SiP (System-in-Package), PoP (Package-on-Package), flip-chip—where paste volume control is extremely sensitive.
High-Mix / High-Volume Production: Any SMT line aiming for Industry 4.0 smart factory integration, with full traceability and data-driven process optimization.
Applications:

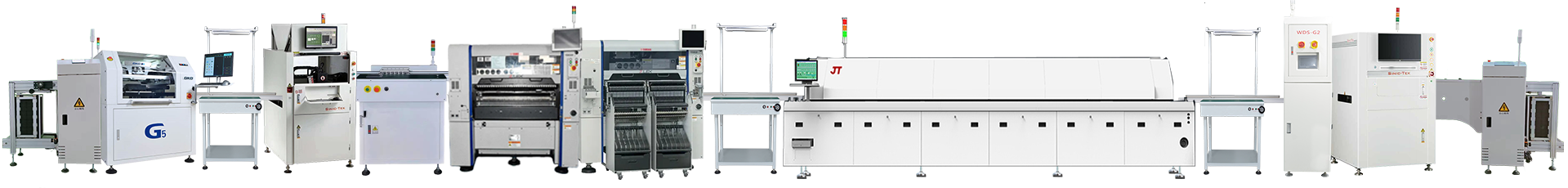

For SMT PCB board production assembling full line machines.
